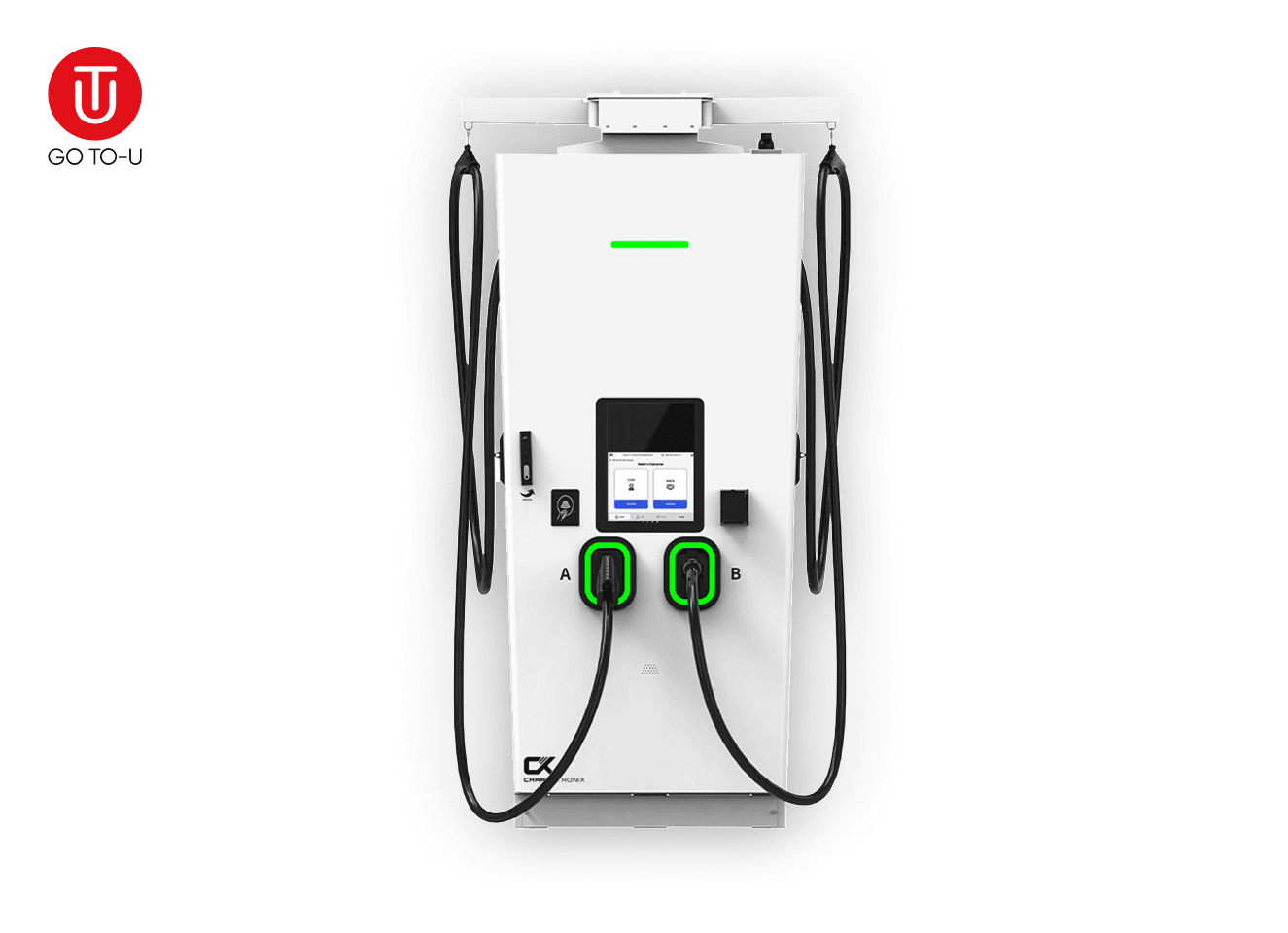

ChargeTronix APEX SXE 240 kW
Price on request
The ChargeTronix APEX SXE 240 kW is a high-power DC fast charger designed for commercial, fleet, and public use. With up to 240 kW output, CCS1 and NACS compatibility, and a constant power range from 300–1000 V, it ensures rapid, reliable charging for all modern EVs. The IP55/NEMA 3R-rated enclosure, 15-inch HD touch screen, and GO TO-U platform integration deliver durability, ease of use, and advanced station management.
- Power Output: 240 kW
- Voltage Range: 50–1000 V DC (constant power from 300–1000 V)
- Cable: CCS1 or NACS, 16.4 ft
- Operating Temperature: -13°F to 122°F (-25°C to +50°C) full power
- Certifications: UL 2202, UL 2231, cTUVus, FCC, Energy Star, CTEP & NTEP
Description
Characteristics
Advantages
The ChargeTronix APEX SXE 240 kW is built with advanced Silicon Carbide (SiC) technology, achieving ultra-high efficiency of over 96% for reduced energy losses, lower electricity costs, and quieter operation. Its intelligent power distribution system dynamically allocates power between multiple connectors, maximizing station usage and enabling two vehicles to charge simultaneously at high speed. Combined with seamless GO TO-U platform integration, operators benefit from optimized utilization, efficient station management, and an enhanced user experience.
Fast Charging
Delivering up to 240 kW with a constant power range of 300–1000 V, the APEX SXE significantly reduces charging time — bringing most EV batteries from low to 80% in approximately 15–30 minutes, depending on capacity. Intelligent power sharing ensures consistent performance whether charging a single vehicle at maximum output or two vehicles simultaneously. This capability makes it ideal for high-traffic locations such as highways, fleet depots, and commercial hubs.
Safety and Protection
The APEX SXE incorporates comprehensive safety systems, including overcurrent, overvoltage, undervoltage, and short-circuit protection, along with continuous temperature monitoring. It also features advanced tilt, flood, and smoke detection sensors that can automatically shut down the charger in emergencies. The robust IP55/NEMA 3R-rated enclosure provides reliable operation in harsh outdoor conditions, while an emergency stop button ensures immediate power cut-off when required.
