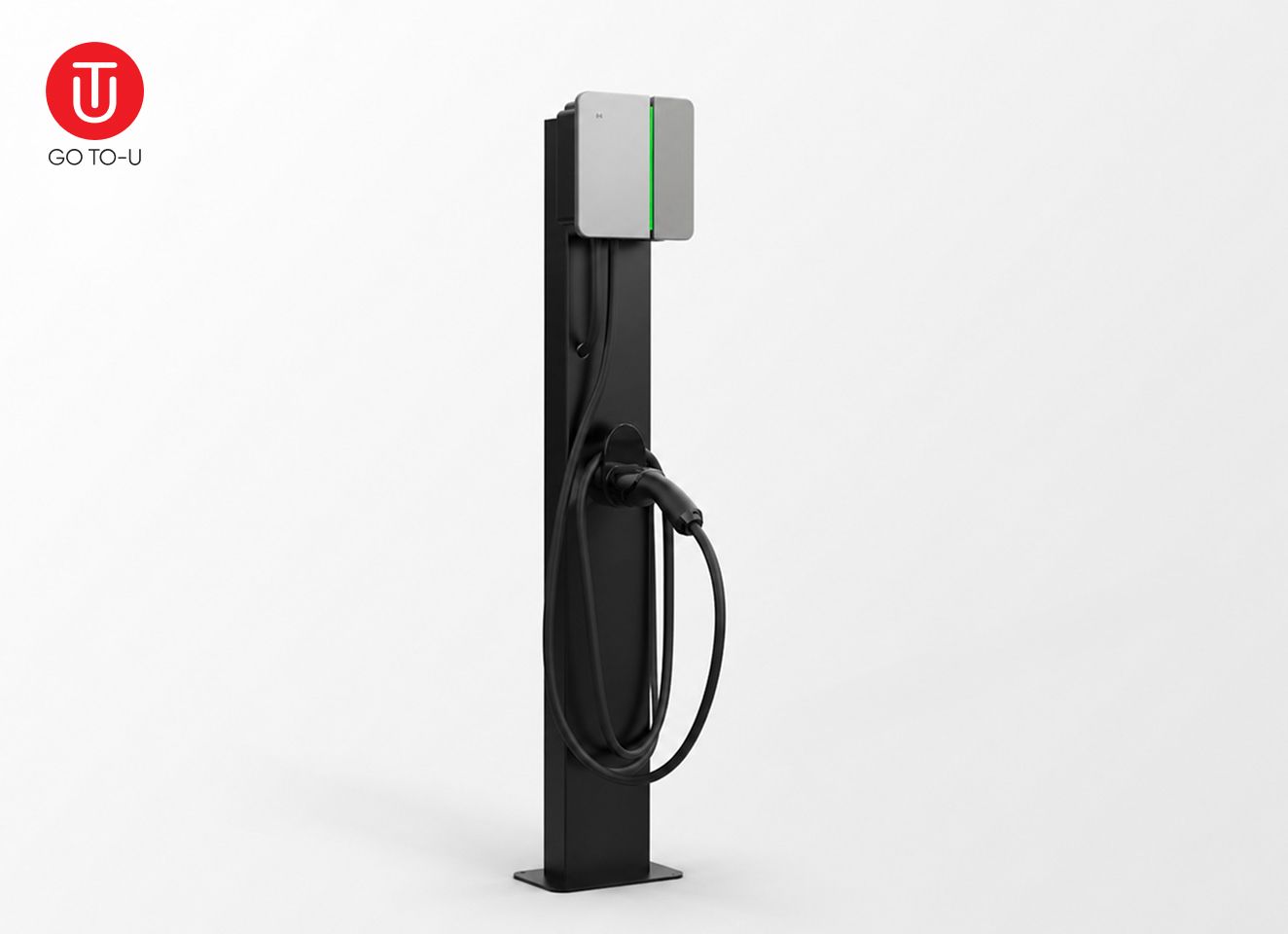

Jueclat AC EV Charger 7–22 kW
Price on request
The Jueclat AC EV Charger is a versatile charging station with a power output of up to 22 kW.
Available with a Type 2 charging cable or Type 2 socket.
- Power: up to 22 kW, three-phase
- Single-phase power: up to 7.4 kW
- Maximum current: 32 A
- Cable options: 5 m or 7.5 m
- Connector: Type 2 cable or Type 2 socket
- User interface: Jueclat App and LED light bar
- Connectivity: Wi-Fi, Ethernet, 4G and RS485
- Communication protocol: OCPP 1.6J
- Protection rating: IP55 and IK10
- Suitable for electric vehicles and plug-in hybrids with a Type 2 charging inlet
Description
Characteristics
Advantages
The Jueclat AC EV Charger provides flexible charging with power options ranging from 7.4 kW on a single-phase connection to 22 kW on a three-phase connection.
The charger is available in two configurations: with an integrated Type 2 charging cable or with a Type 2 socket. Customers can also select a 5 m or 7.5 m cable depending on their installation requirements.
Flexible Charging Options
With an adjustable current of up to 32 A, the charger can be configured according to the available electrical capacity and the requirements of the connected vehicle.
The Type 2 connector makes it suitable for electric vehicles and plug-in hybrids commonly available in Malaysia.
Connectivity and Management
The charger supports Wi-Fi, Ethernet, 4G and RS485 connectivity and uses the OCPP 1.6J communication protocol.
Charging and device information can be accessed through the Jueclat App, while the integrated LED light bar provides clear visual status indication.
Safety and Protection
The charging station includes protection against overcurrent, overvoltage, undervoltage, short circuit, leakage, overheating, relay faults, phase loss and control pilot faults.
It also features integrated DC 6 mA residual current protection, an IP55 enclosure rating and IK10 impact resistance.
