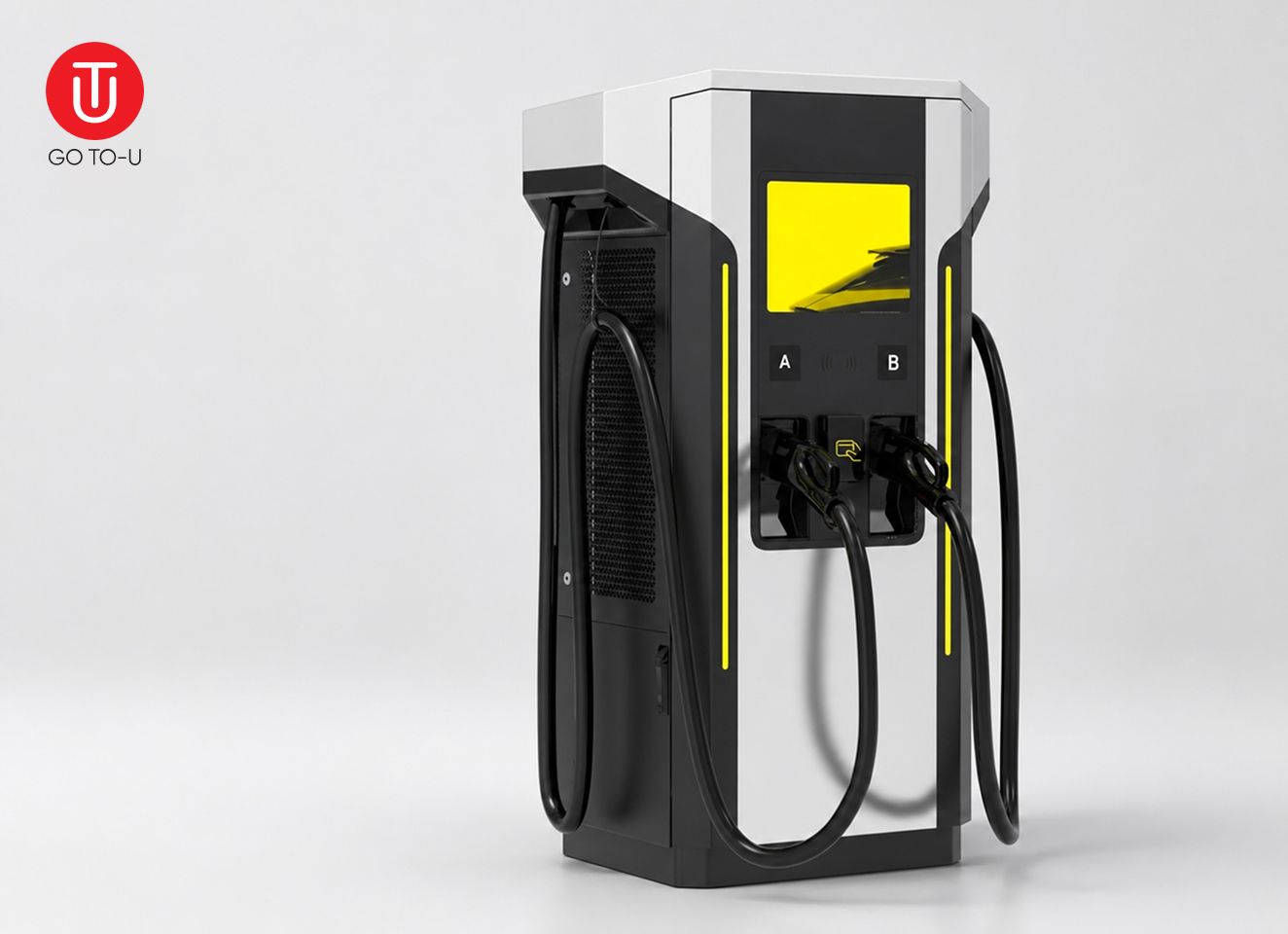

Lotus DC 120–240 kW
Price on request
The Lotus 120–240 kW DC Fast Charger is a high-capacity charging solution developed for charging hubs, highway locations, fleet depots and other high-demand commercial sites.
Key features:
- 120 kW or 240 kW power configuration
- Output current of up to 300 A
- One or two CCS2 charging cables
- 5 m cable length
- 15-inch touchscreen interface
- RFID, QR code, POS and NFC support
- Ethernet and 4G connectivity
- OCPP 1.6J, DIN 70121 and ISO 15118 support
- Remote maintenance capabilities
- IP54 weather protection and IK10 impact resistance
- Signature Lotus Yellow finish
Suitable for electric vehicles equipped with a CCS2 charging inlet.
Description
Characteristics
Advantages
The Lotus DC Fast Charger provides high-power charging for commercial sites, public charging hubs and other locations with high charging demand.
It is available in 120 kW and 240 kW configurations, allowing charging operators to select the appropriate capacity based on available electrical infrastructure and expected vehicle traffic.
High-Power Charging
With a maximum output current of up to 200 A or 300 A, the charger is designed to reduce charging time for compatible electric vehicles.
The station can be configured with one or two CCS2 charging cables, providing greater flexibility for different charging-site requirements.
User Interface and Payments
The integrated 15-inch touchscreen provides drivers with a clear and convenient charging interface.
The charger supports RFID, QR code, POS and NFC functionality for user authentication and payment.
Connectivity and Management
Ethernet and 4G connectivity enable remote communication, charger monitoring and maintenance.
The charger supports OCPP 1.6J, DIN 70121 and ISO 15118 communication protocols.
Safety and Durability
The charging station complies with IEC 61851 and IEC 62196 standards.
Its IP54 enclosure rating provides protection against dust and water exposure, while the IK10 rating offers a high level of impact resistance.
