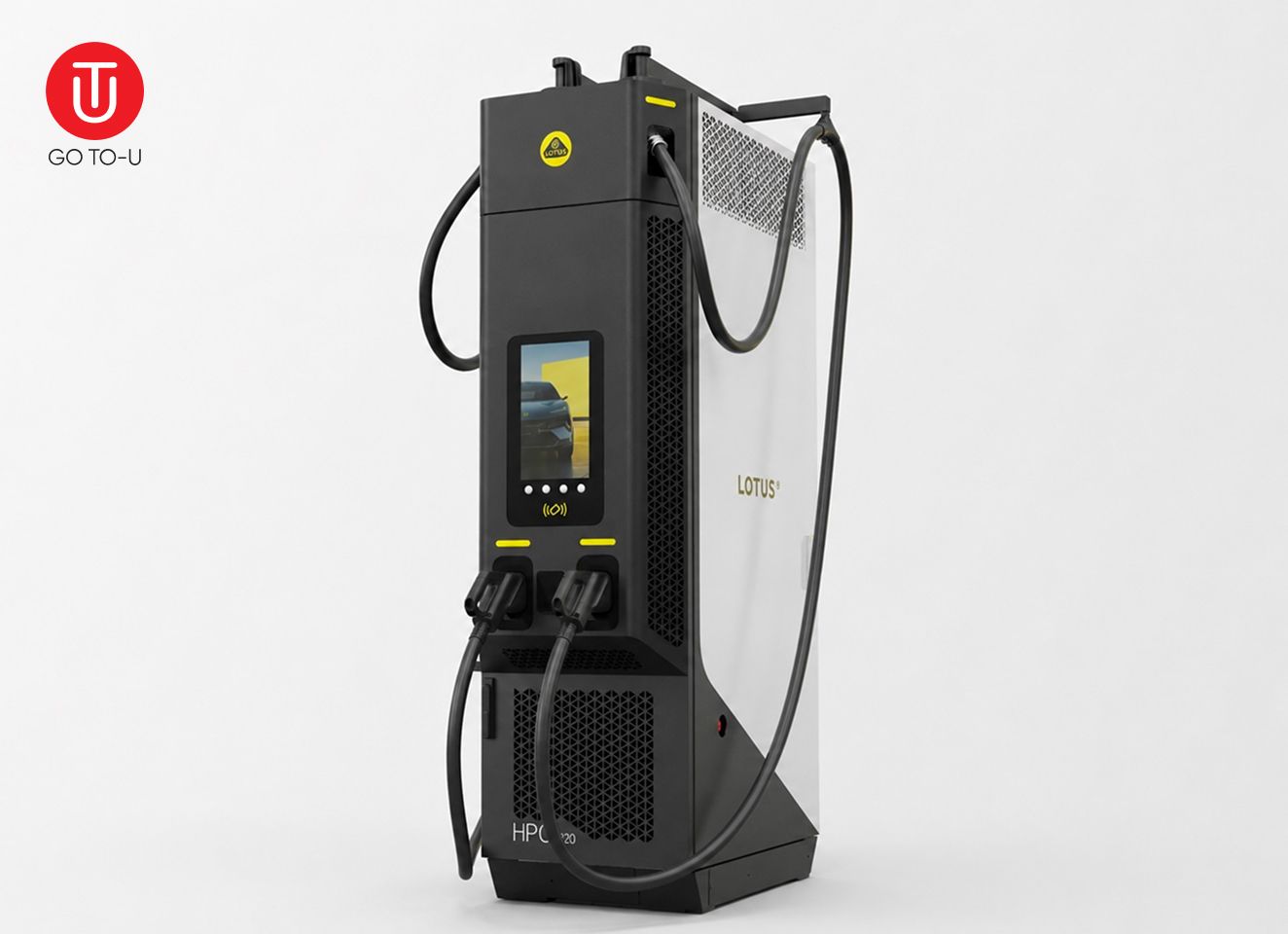

Lotus DC 160–320 kW
Price on request
The Lotus High-Power DC Charger is a dual-connector charging solution designed for high-traffic charging hubs, fleet depots and large commercial locations.
Available in 160 kW, 240 kW and 320 kW configurations, the charger supports simultaneous CCS2 charging, Dynamic Load Balancing and advanced vehicle authentication technologies.
Key features:
- 160 kW, 240 kW or 320 kW power configuration
- Maximum output current of up to 500 A
- Two CCS2 charging cables
- 3.5 m, 5 m or 7 m cable options
- 15.6-inch touchscreen
- POS, RFID, NFC, mobile app and QR code support
- AutoCharge and Plug & Charge functionality
- Dynamic Load Balancing
Compatible with electric vehicles equipped with a CCS2 charging inlet.
Description
Characteristics
Dual-Connector High-Power Charging
The Lotus High-Power DC Charger is built for charging locations that require high throughput and the ability to serve multiple vehicles efficiently.
Two integrated CCS2 charging cables support simultaneous charging, while the available 160 kW, 240 kW and 320 kW configurations allow the station to be adapted to different site capacities and operational requirements.
Intelligent Power Distribution
Dynamic Load Balancing distributes the available charging power between connected vehicles according to real-time demand.
This helps charging-site operators make more efficient use of the available electrical capacity while maintaining reliable charging performance.
Remote Monitoring and Maintenance
Ethernet and 4G connectivity enable remote charger monitoring, diagnostics and maintenance.
Support for OCPP 1.6J allows integration with compatible charging-management platforms, while DIN 70121 and ISO 15118 enable communication between the charger and connected vehicles.
Comprehensive Protection
The charger includes protection against overcurrent, overvoltage, undervoltage, polarity reversal, leakage, grounding faults, open doors, impact, smoke, water immersion and tip-over events.
Its IP54 enclosure rating and IK10 impact resistance make it suitable for demanding public and commercial charging environments.
